Column Covers

Custom Metal, ACM Column Covers –

SAF Metal Fabrication is an experienced fabricator of Metal & ACM Column Covers and Metal beam and ACM Beam wraps.  In addition, we can custom fabricate architectural bollards and apply custom finishes.

For your next column cover project choose from a wide selection of materials, anodizing and paint finishing options including:

  • AAMA 2605 Fluorocarbon Kynar Painted. Also available in AAMA 2604 and AAMA 2603
  • Anodized Aluminum – Clear anodized, Bronze anodized, Black anodized and Gold anodized.
  • Stainless Steel Covers (Brushed, Mirrored, or Patterned),
  • 4mm & 6mm Aluminum Composite Material (ACM) from Alpolic, Alucobond, and Reynobond.
  • SAF also fabricates Custom Covers including Square, Elliptical & Conical Shaped.

Sound Dampening Option for Column Covers & Panels… Listen up!

When sound deadening is called for, specify SAF QUIET sound reduction option for our line of Column Covers & Panels. QUIET is an acoustical grade thermoplastic applied to the inside surfaces of SAF covers and panels. More info here.

SAF is one of the quickest and highest quality suppliers of Painted Aluminum Metal Column Covers. We offer Kynar painted, Fluorocarbon powder coated, Tiger Drylac High Gloss &  the ability to quickly produce Custom Painted Covers.  Choose round, square or rectangular.

Ask about our XpressShip column cover program where we can ship in just 2 weeks!  Just fax your request to our toll free fax # 877-949-4759.

Visit the full SAF ACM & Aluminum Column Cover Gallery

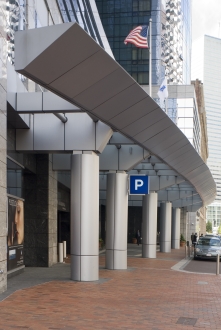

Atlanta-Column Covers Project DSCN0333 - Column Cover Project 100_1782 SAF Column Covers Project NYC 8tn Column Cover view

SAF makes it easy by using a pre-engineered approach in our 1000 Series (butt joint) and 2000 Series (reveal joint) column covers.  Files are available in Revit by visiting our SAF Downloads page here.

Download the SAF Column Covers Brochure
      M1000 Column Cover       m2000 Column Cover       C1000     C2000
         M-1000          M-2000          C-1000          C-2000

M-Series Column Covers

M-Series Metal Column Covers are fabricated from metal sheets (most often aluminum or stainless steel).  In addition to 57 standard painted colors offered by SAF, we also offer computerized custom color matching and a variety of popular anodized colors. Choose from sheet, perforated and embossed materials:

  • 3003 Series Aluminum Alloys
  • 5005 Series Anodized Quality Aluminum Alloys
  • 300 Series Stainless Steel Alloys (brushed or mirror finish
  • Other Specialty Metals (including perforated, embossed, and woven materials)

M1000 Series Column Cover (DETAILS)

The M-1000 Series Metal Column Cover is a “butt joint” column cover that uses a keyhole effect where the bolt from the male attachment is the key.  When placed through the teardrop shaped eyehole, gravity pulls the female half of the column cover down to lock it into place.  These can be fabricated using any available metal (aluminum, stainless, etc…)

M2000 Series Column Cover (DETAILS)

The M-2000 Series Metal Column Cover is a “reveal joint” column cover.  The sections of the column covers are bolted to an angle that is attached to the structural beam.  A gap is left between the sections for bolting the columns to the angles.  This gap can then be filled with caulk, filled with a channel, or left open.  These can be fabricated using any available metal (aluminum, stainless, etc…).

C-Series Column Covers

C-Series Composite Column Covers are fabricated out of metal composite material and usually out of aluminum composite materials (ACM).  In addition to the full array of popular standard colors offered in aluminum composite material by Reynobond, Alpolic, or Alucobond, SAF also offers custom color service with a slightly longer lead time.  Choose from:

  • 3mm Standard Core
  • 4mm Standard Core
  • 4mm Fire-Rated Core
  • 6mm Standard Core

C1000 Column Cover (DETAILS)

The C-1000 Series Composite Column Cover is a “butt joint” column cover that uses a keyhole effect where the bolt from the male attachment is the key.  When placed through the teardrop shaped eyehole, gravity pulls the female half of the column cover down to lock it into place.  These are fabricated using ACM Panels (Aluminum Composite Material).

C2000 Column Cover (DETAILS)

The C-2000 Series Composite Column Cover is a “reveal joint” column cover.  The sections of the column covers are bolted to an angle that is attached to the structural beam.  A gap is left between the sections for bolting the columns to the angles.  This gap can then be filled with caulk, filled with a channel, or left open.  These can be fabricated using ACM (Aluminum Composite Material).

Column Cover Quote Request Forms

Print and fax our easy-to-use standard request form:

– OR Use our Online website quote request form

CONTACT AN SAF ARCHITECTURAL COLUMN COVERS PRO
