Series C4000 Rainscreen Panel System

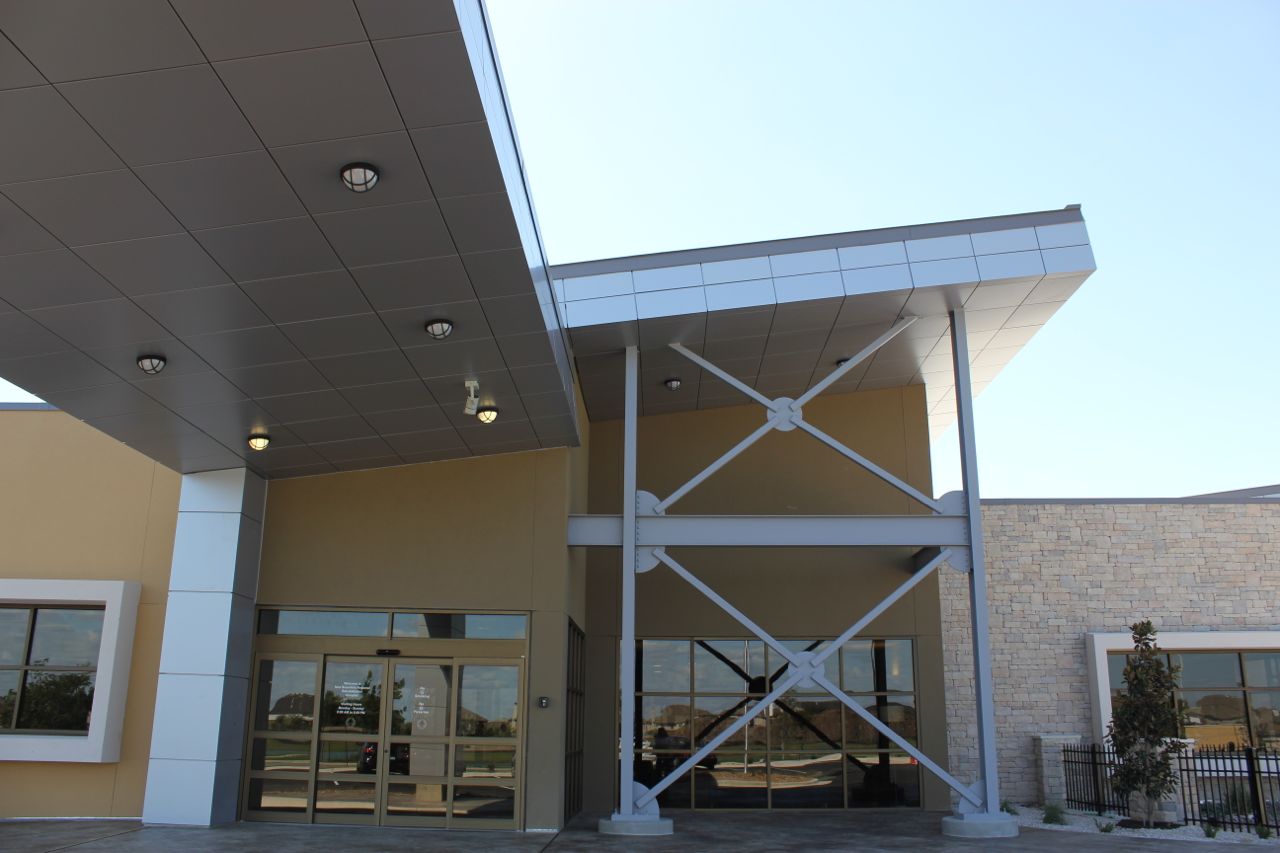

Rainscreen Panel Systems - NB-Hospital-04 Series C4000 Rainscreen Drained & Back-Ventilated ACM Panel System

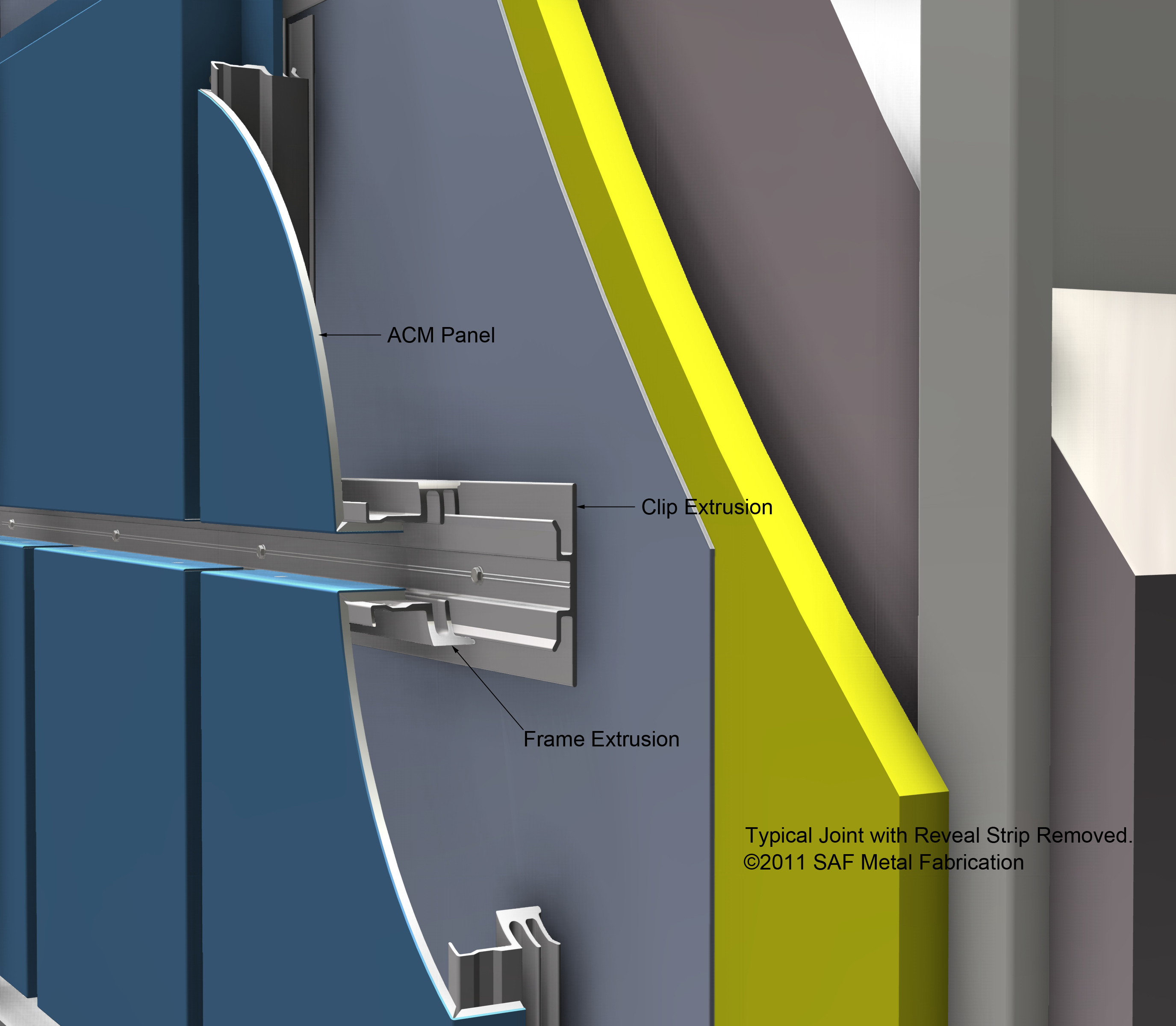

The SAF Series 4000 Panel System is a drained and back ventilated rainscreen panel incorporating a strip of composite material in the reveal between each ACM  panel (instead of caulk) resulting in a more uniform appearance. The rain screen Series C4000 Rainscreen Panel System comes with fabricated ACM panels and shipped-loose aluminum “track” extrusions. The fabricated ACM panels include a “frame” extrusion, factory attached to the routed and returned edges of the panel that fits conveniently into the field installed horizontal and vertical “track” extrusions. For a rainscreen panel system requiring mitered frame extrusions and additional panel reinforcements see Series 4500 Rainscreen Panels here. SAF’s Series C4000 Rainscreen Panel System is designed to allow moisture to permeate the outside wall, but subsequently drain through weep holes along the bottom edge of each panel. While any remaining moisture is designed to evaporate, the outside wall is not designed to act as a water/vapor barrier for the building.
