Aluminum Panel Extrusion

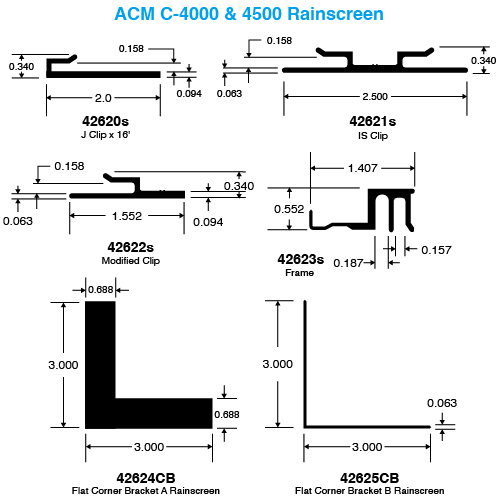

ACM C-4000 & 4500 Rainscreen


Enter desired quantity of each extrusion.
(Configure items with finish and cutting instructions after adding to cart.)

QtySectionDescriptionLengthWt per each
42620s42620s J Clip- 6063 T5--144"12'3.264
42621s42621s IS Clip 12 foot 6063 T612'3.768
42622s42622s Modified Clip 12 foot 6063-T612'2.304
42623s42623s 4mm Frame 12 Foot 6063 T612'3.216
42624CB42624CB Flat Corner Bracket A Rainscreen0'0.004
42625CB42625CB Corner Bracket B Rainscreen0'0.030
