ACM C-4000, 4200, & 4500 RAINSCREEN EXTRUSIONS
 |
 |
 |
 |
| 42620s | 42621s | 42622s | 42623s |
 |
 |
 |
|
| 42700s | 42724CB | 42725CB |
Specification Table
| Sect. | Description | Length (in feet) | lbs/each |

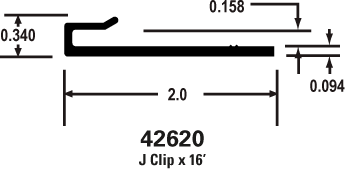

| 42620s | J Clip T-6 (Mill finish) | 12 | 3.625 |

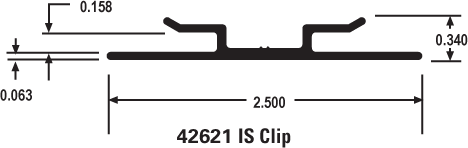

| 42621s | IS Clip 12 foot 6063 T-6 (Mill finish) | 12 | 3.768 |

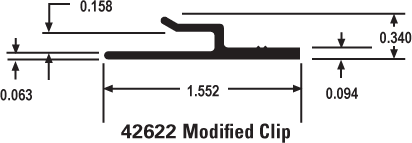

| 42622s | Modified Clip 12 foot 6063 T-6 (Mill finish) | 12 | 2.304 |
| 42623s | Frame 12 foot 6063 T-6 (Mill finish) | 12 | 3.216 |

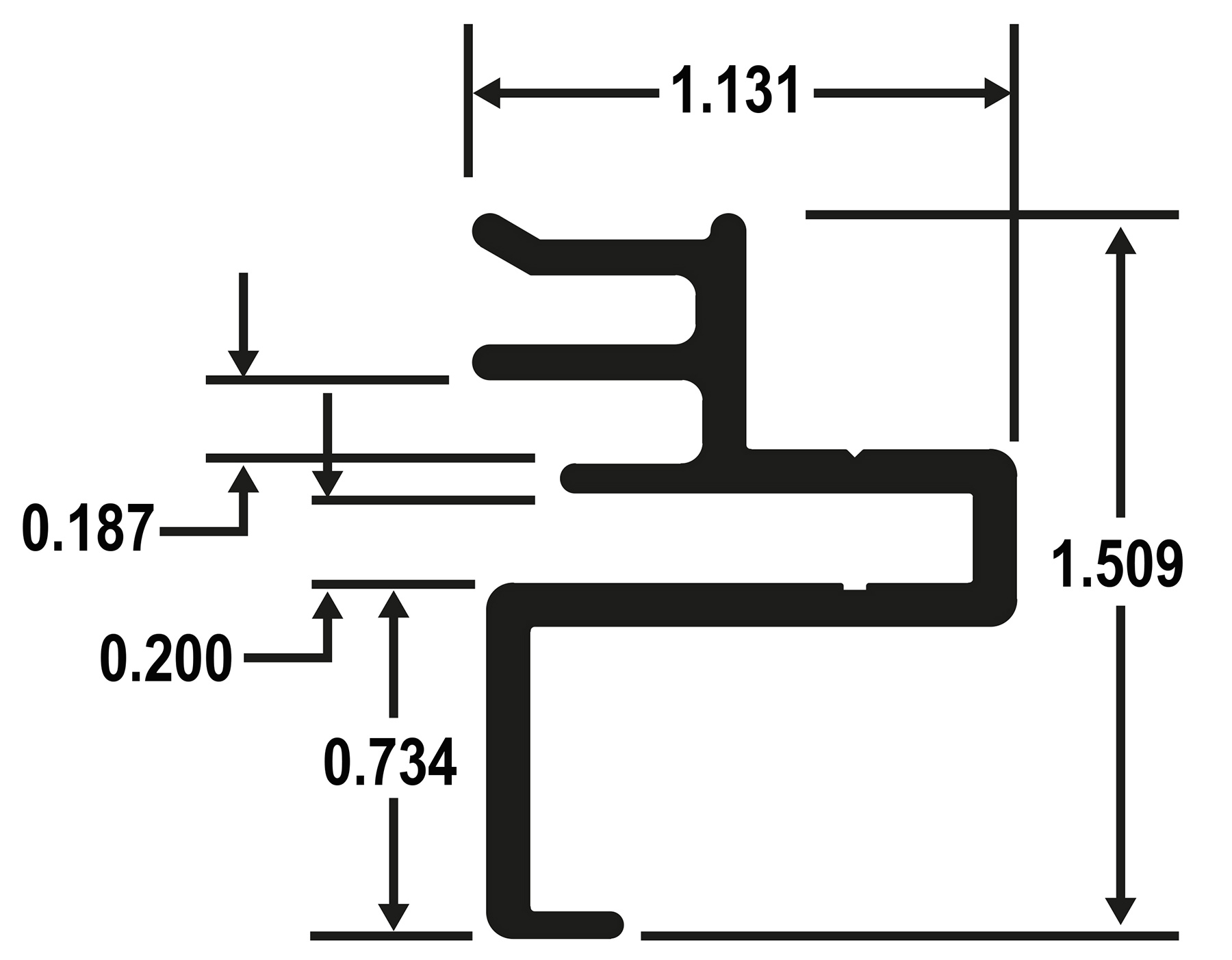

| 42700s | Concealed Fastener Frame | 12 | 4.77 |
| 42724CB | Flat Panel Corner Bracket (0.063” x 2” x 2”) | 2″ | .03 |

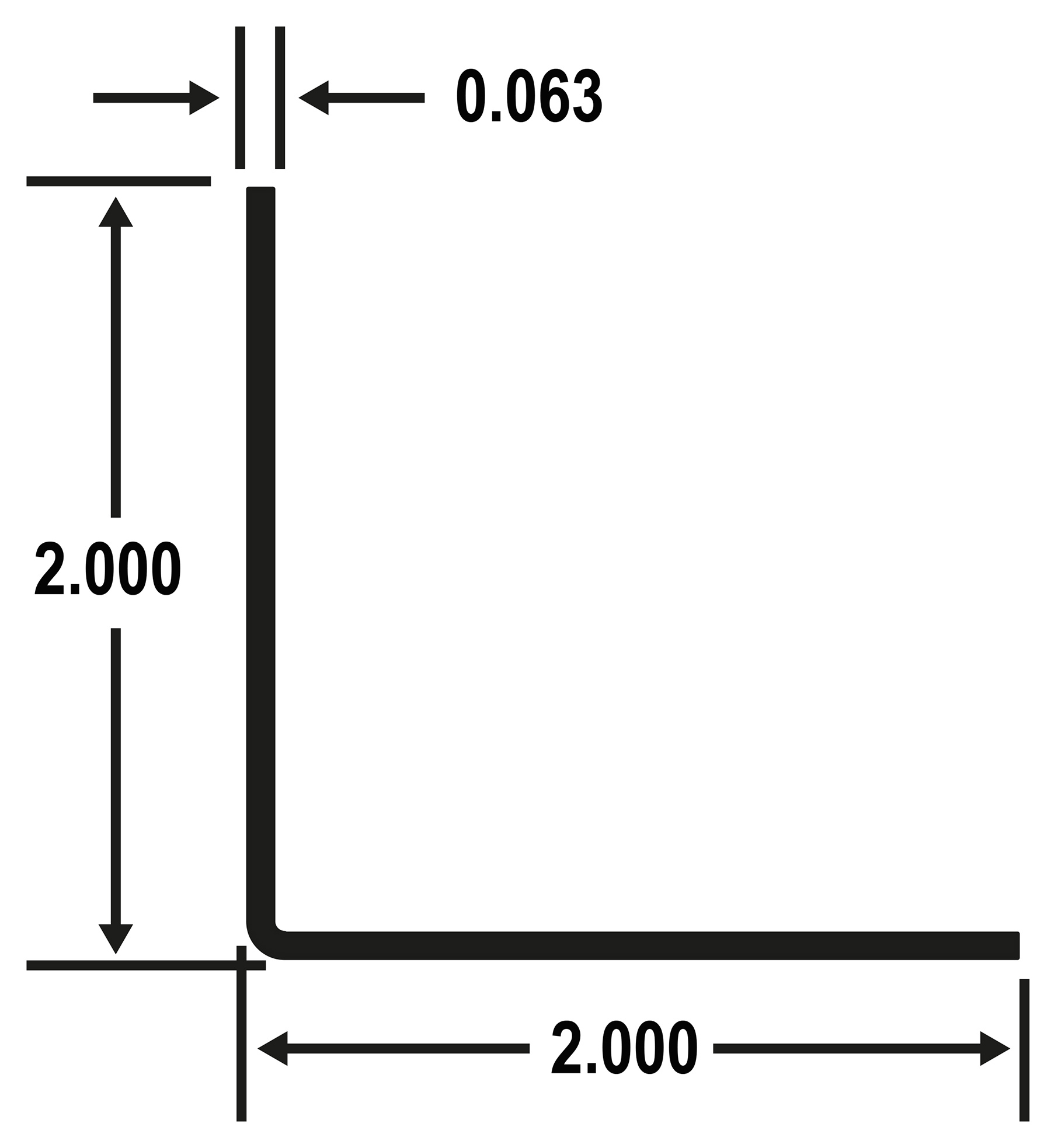

| 42725CB | Flat Panel Corner Bracket (0.063” x 2” x 2”) | 2″ | .03 |
