Aluminum Panel Extrusions

Speed. Selection. Style. Our extrusions lead the industry.

ACM E WALL SERIES EXTRUSIONS

 e-Wall Panel Extrusions e_wall Panel Extrusions  SAF E Wall Series Extrusions
25453s 25458s 25457s
 SAF E-Wall Panel Extrusion  SAF E Wall Series Extrusion  SAF E Wall Series Extrusion
25456s 25455 25454

Specification Table

Sect.  Description Length (in feet) lbs/each
25453s E Wall Perimeter 6063 T-6 (Specify Finish) 12 1.884
25454s E Wall Inside Corner 6063 T-6 (Specify Finish) 12 3.828

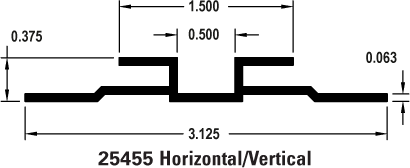

25455s E Wall Hor/Vert Reveal 6063 T-6 (Specify Finish) 12 4.236
25456s E Wall Perimeter Reveal 6063 T-6 (Specify Finish) 12 2.676

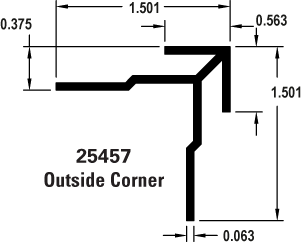

25457s E Wall Outside Corner 6063 T-6 (Specify Finish) 12 3.456

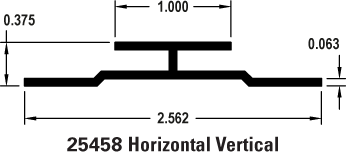

25458s E Wall Hor/Vert 6063 T-6 (Specify Finish) 12 3.444
