Formed from aluminum sheet, our beautiful Formed Cornice trims, soffit, and mouldings are available in a variety of interchangeable Cornice profiles – allowing you to custom design your cornice. Most Formed Cornices are compatible with our concealed gutter & internal drains to eliminate exposed downspouts. Select one of our fifteen pre-designed cornices that have all the details worked out for you.
Historical Cornice Replications
Often, we receive a request to match existing cornices built many years ago — we take exceptional pride with such historical replications. We have replicated cornices for churches, schools, and court houses to mention a few.
CORNICE DESIGN 1 |
||||
CLASSIC Nominal Sizes: 32″ Entablature, 16″ Depth CONTEMPORARY Nominal Sizes: 18″ Entablature, 16″ Depth Large entablature, small depth, extends our Designer Series Roman Gutter System stepped with an additional Roman Moulding. A frieze and architrave finish its lower portion. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

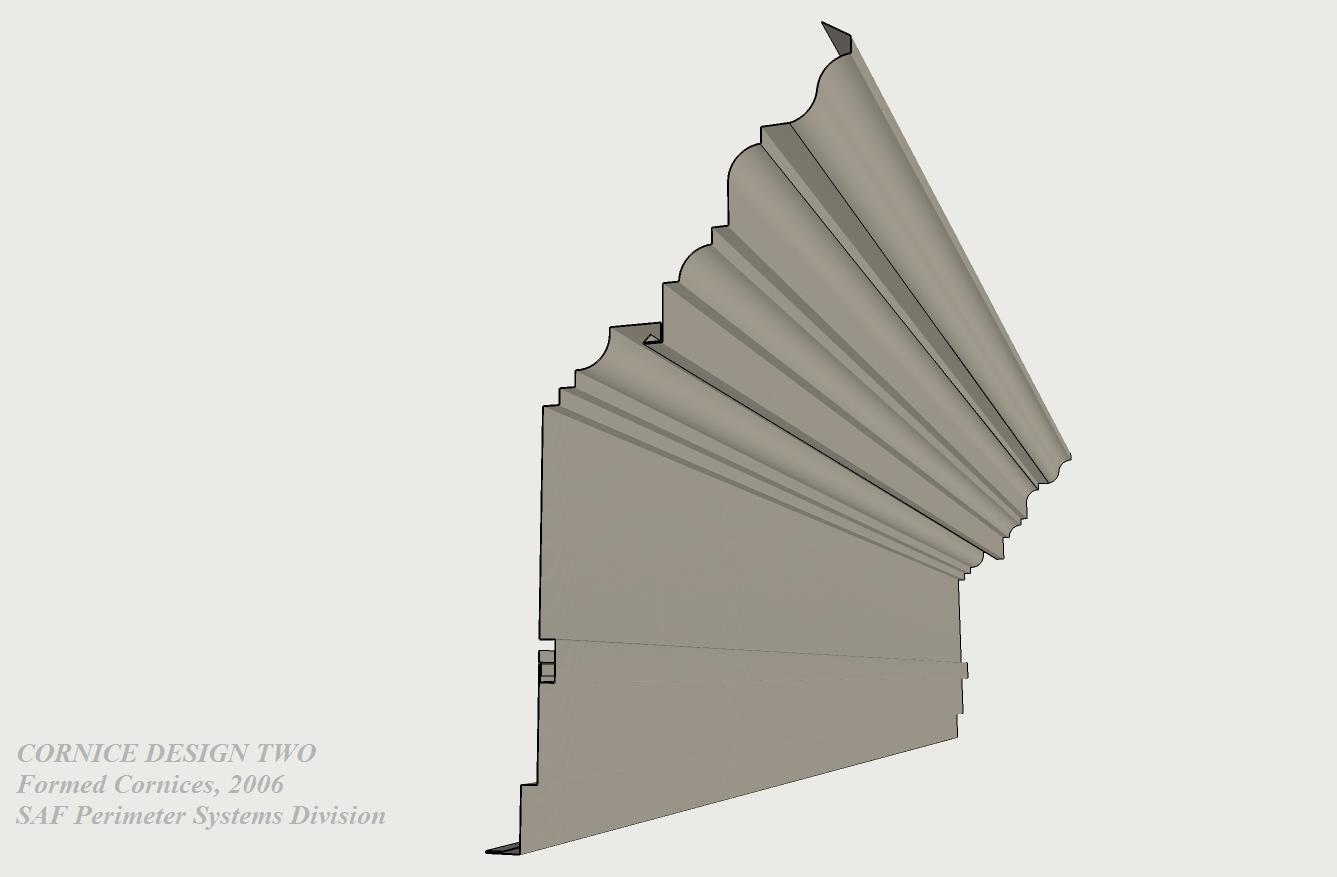

CORNICE DESIGN 2 |
||||
CLASSIC Nominal Sizes: 34″ Entablature, 15″ Depth CONTEMPORARY Nominal Sizes: 15″ Entablature, 15″ Depth Large entablature, small depth. Generally, does not incorporate a gutter system but can accommodate a built in gutter. Includes a crown moulding, large frieze moulding, and J-Trim moulding. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
CORNICE DESIGN 3 |
||||
CLASSIC Nominal Sizes: 44″ Entablature, 21″ Depth CONTEMPORARY Nominal Sizes: 24″ Entablature, 21″ Depth Features our Designer Series “Roman Profile” commercial gutter, 2 simple convex/concave mouldings, and a frieze. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

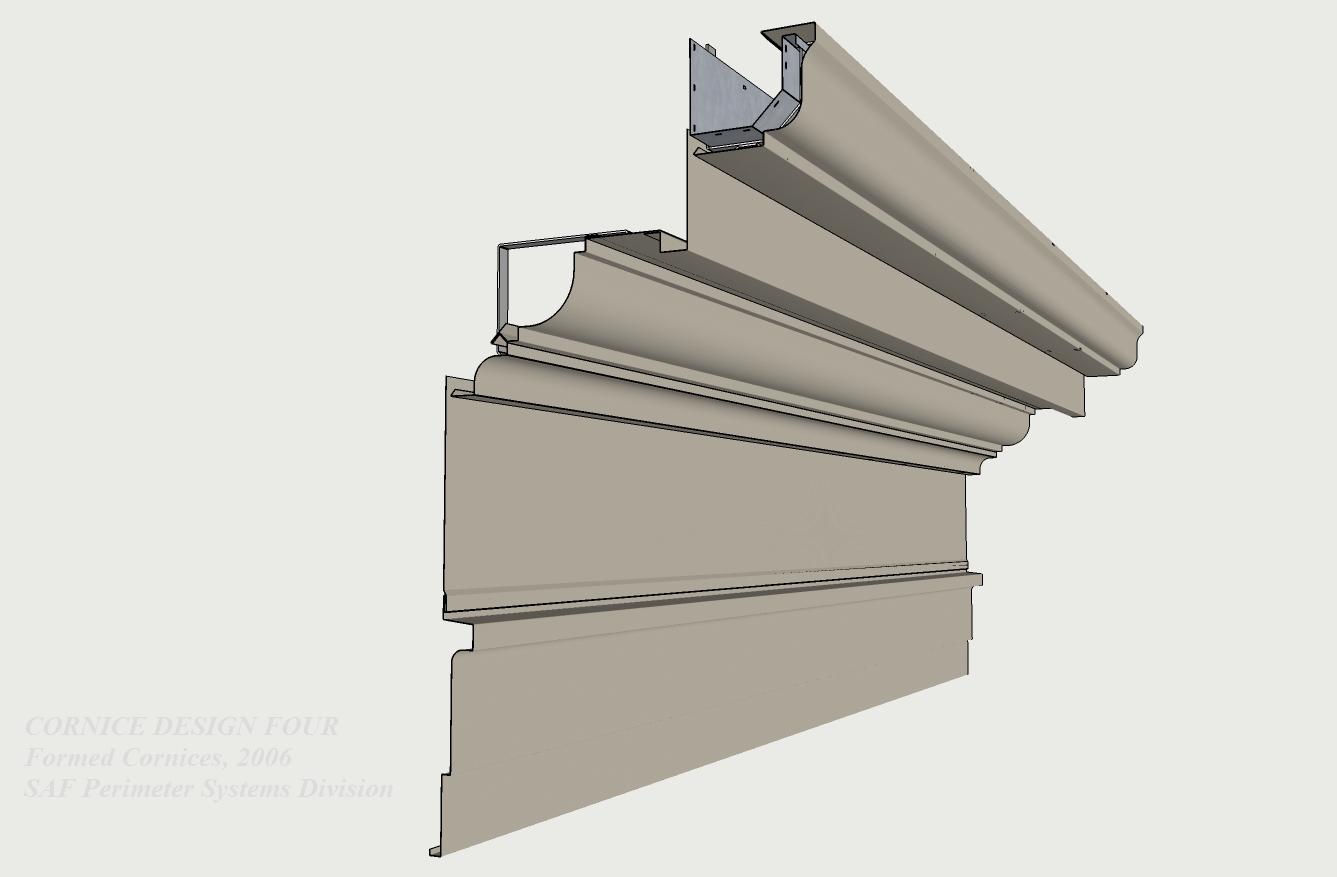

CORNICE DESIGN 4 |
||||
CLASSIC Nominal Sizes: 48″ Entablature, 24″ Depth CONTEMPORARY Nominal Sizes: 20″ Entablature, 24″ Depth Beautifully sculptured cornice consisting of: 2 mouldings to create a Convex / Concave Reverse pattern, a frieze, optional vented or non-vented soffit, and features our Designer Series 6” Colonial Gutter System. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

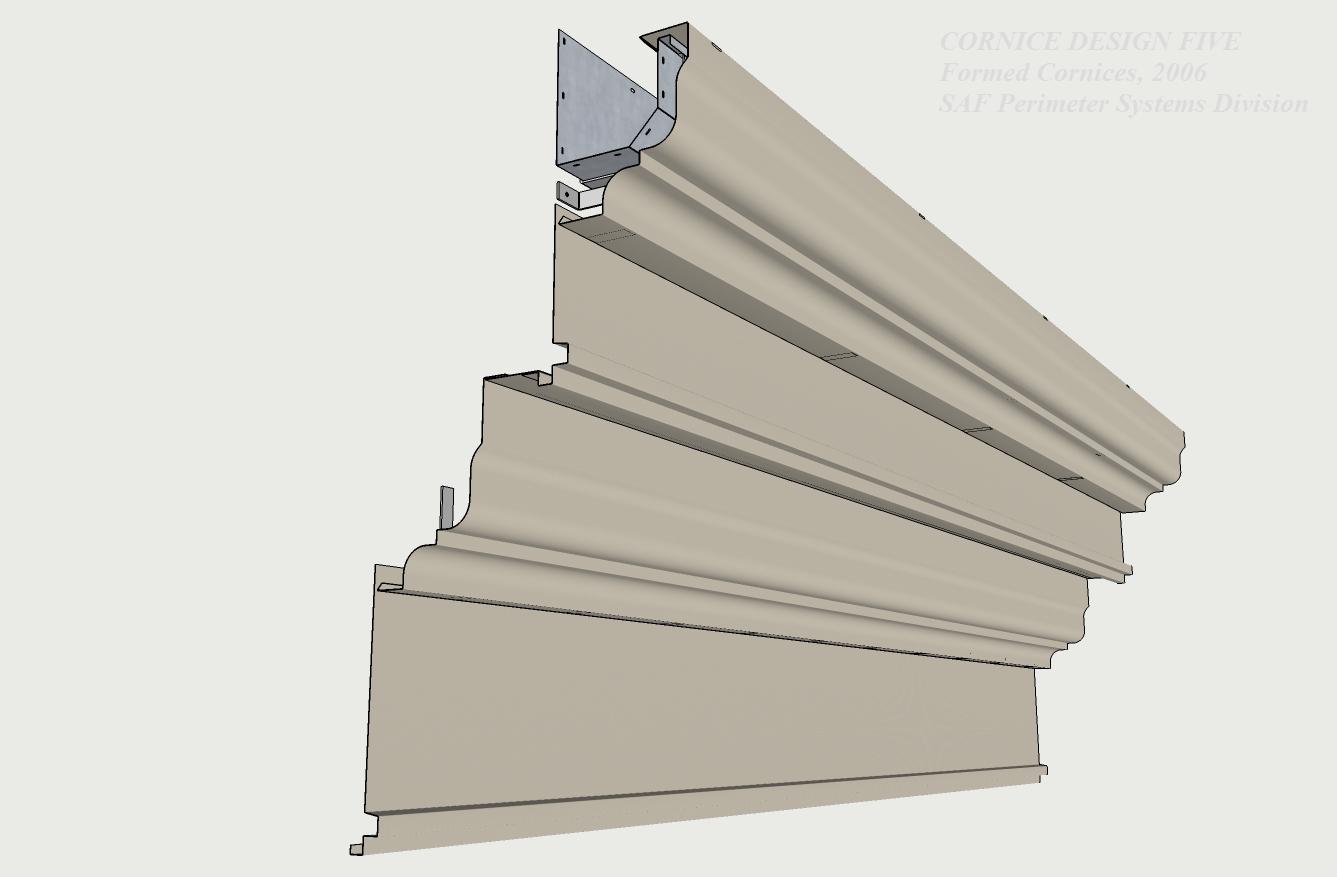

CORNICE DESIGN 5 |
||||
CLASSIC Nominal Sizes: 42″ Entablature, 20″ Depth CONTEMPORARY Nominal Sizes: 28″ Entablature, 20″ Depth Large entablature with a small depth and features our Designer Series Roman Gutter System stepped with an additional Roman Moulding. Profiles are separated with 2 Frieze trims along with a continuous vented soffit. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
CORNICE DESIGN 6 |
||||
CLASSIC Nominal Sizes: 31″ Entablature, 33″ Depth CONTEMPORARY Nominal Sizes: 24″ Entablature, 33″ Depth Beautifully sculptured cornice contains 3 cavetto shape mouldings, a frieze, optional vented or non-vented soffit and features our Designer Series commercial gutter. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
CORNICE DESIGN 7 |
||||
CLASSIC Nominal Sizes: 25″ Entablature, 26″ Depth CONTEMPORARY Nominal Sizes: 18″ Entablature, 26″ Depth Provides a small entablature with a large depth — features a frieze, a double set of convex mouldings, optional vented or non-vented soffit and features our Designer Series Batten commercial gutter. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
CORNICE DESIGN 8 |
||||
CLASSIC Nominal Sizes: 18+” Entablature, 12″ Depth CONTEMPORARY Nominal Sizes: 10″ Entablature, 12″ Depth This is a very popular profile using dual crown mouldings. These crown mouldings feature a small radius for their convex and concave profiles. These small radius mouldings simulate wood trim more so than stone work. Cornice Design 8 also lends itself well to parapets and roofs where gutters are not required. Dentils, flutes, and engravings may be added. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

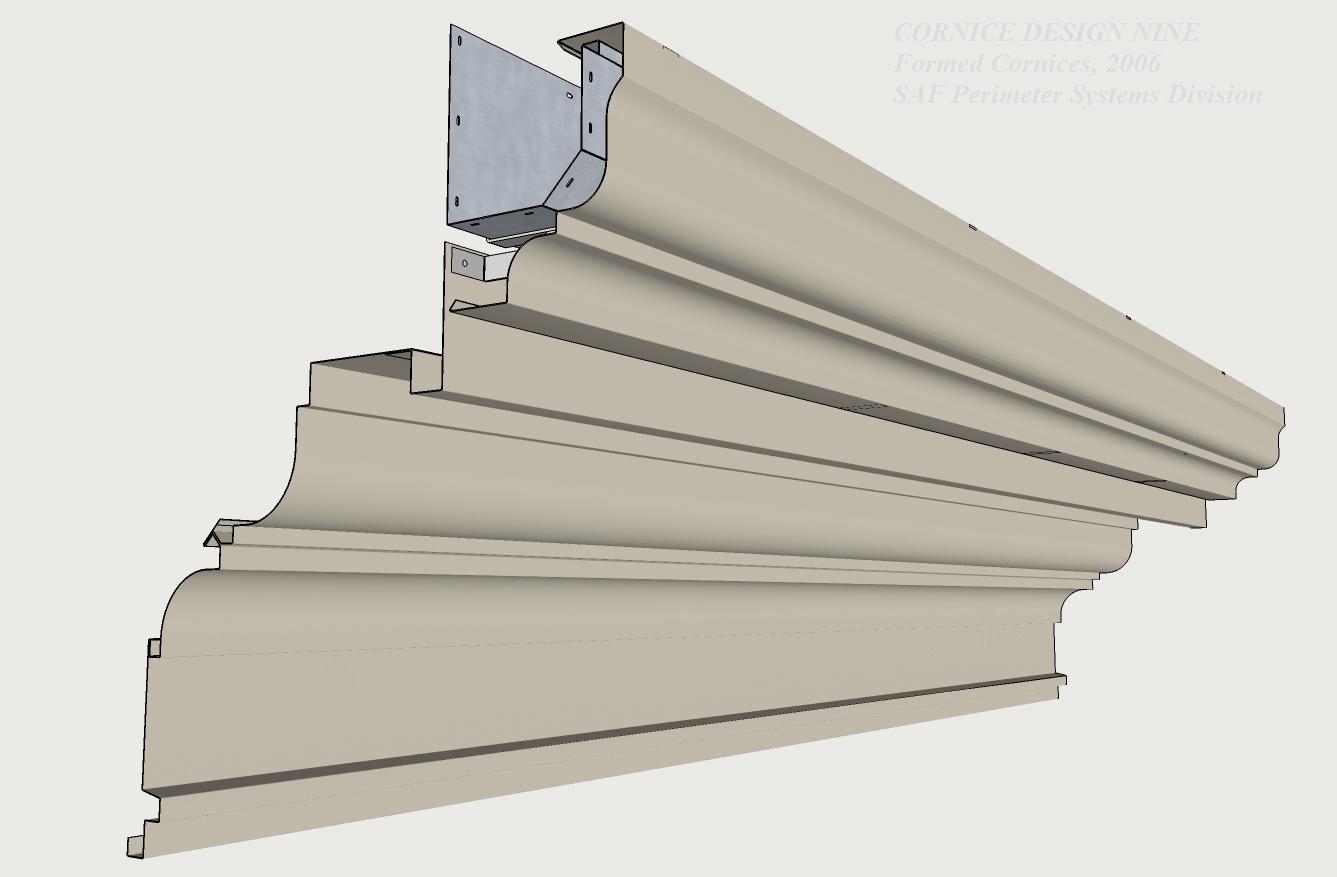

CORNICE DESIGN 9 |
||||
CLASSIC Nominal Sizes: 32″ Entablature, 26″ Depth CONTEMPORARY Nominal Sizes: 24″ Entablature, 16″ Depth This striking cornice features our Designer Series “Roman Profile” commercial gutter, 2 simple convex/concave mouldings, a frieze, and architrave. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

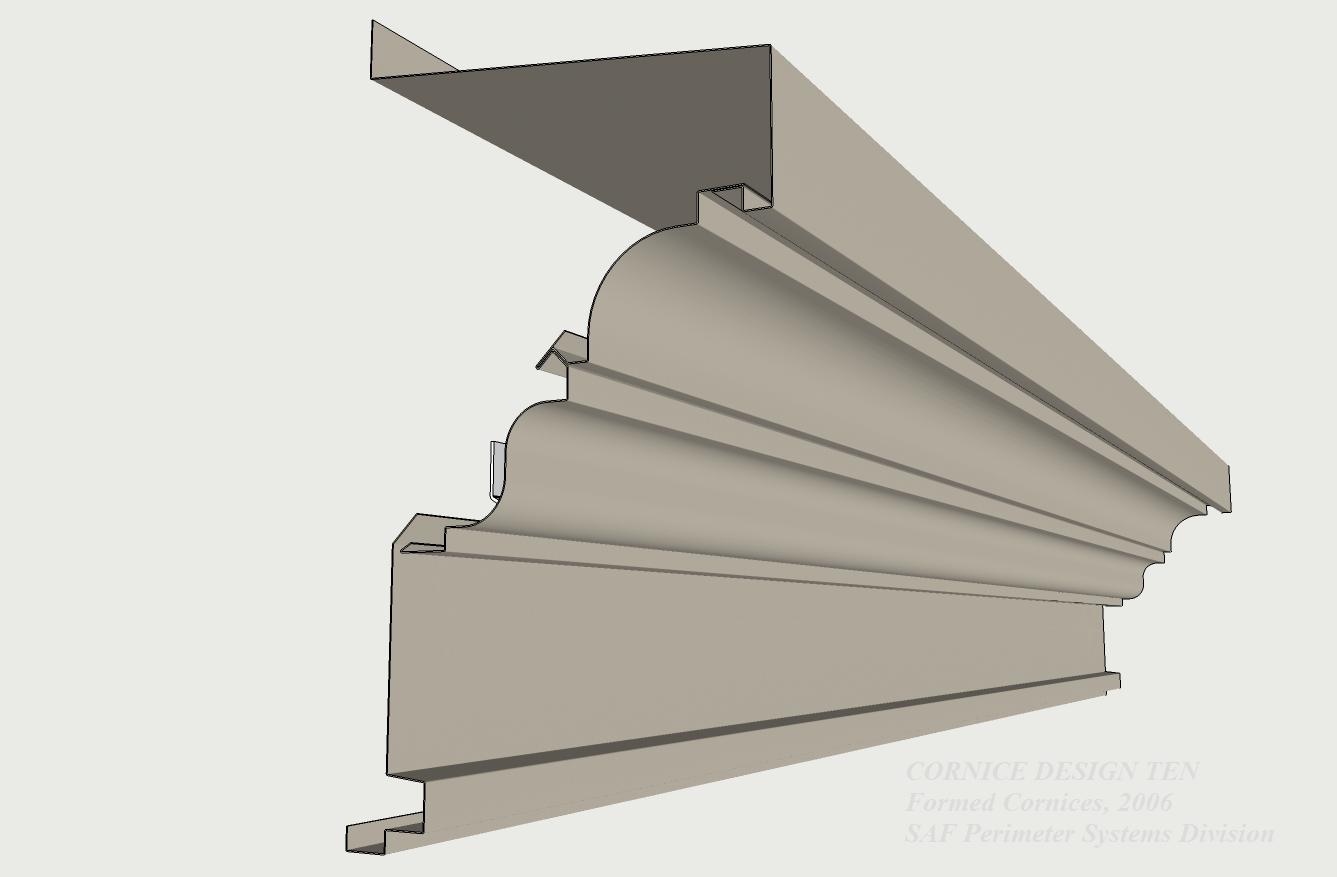

CORNICE DESIGN 10 |
||||
CLASSIC Nominal Sizes: 24″ Entablature, 15″ Depth CONTEMPORARY Nominal Sizes: 15″ Entablature, 15″ Depth Popular profile for use with parapets as well roof eaves. This cornice design uses a large 3” convex moulding with a scrolled 1-1/2” moulding along with a frieze moulding. This cornice design also lends itself well to parapets and roofs where gutters are not required. With some creativity, additional mouldings dentils, flutes, and engravings may be added. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
CORNICE DESIGN 11 |
||||
CLASSIC Nominal Sizes: 36″ Entablature, 20″ Depth CONTEMPORARY Nominal Sizes: 18″ Entablature, 20″ Depth This cornice – with a large entablature with a small depth – features our Designer Series Roman Gutter System stepped with an additional Roman Moulding. Profiles are separated with 2 Frieze trims along with a continuous vented soffit. Optional components include dentils, flutes, and engravings. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

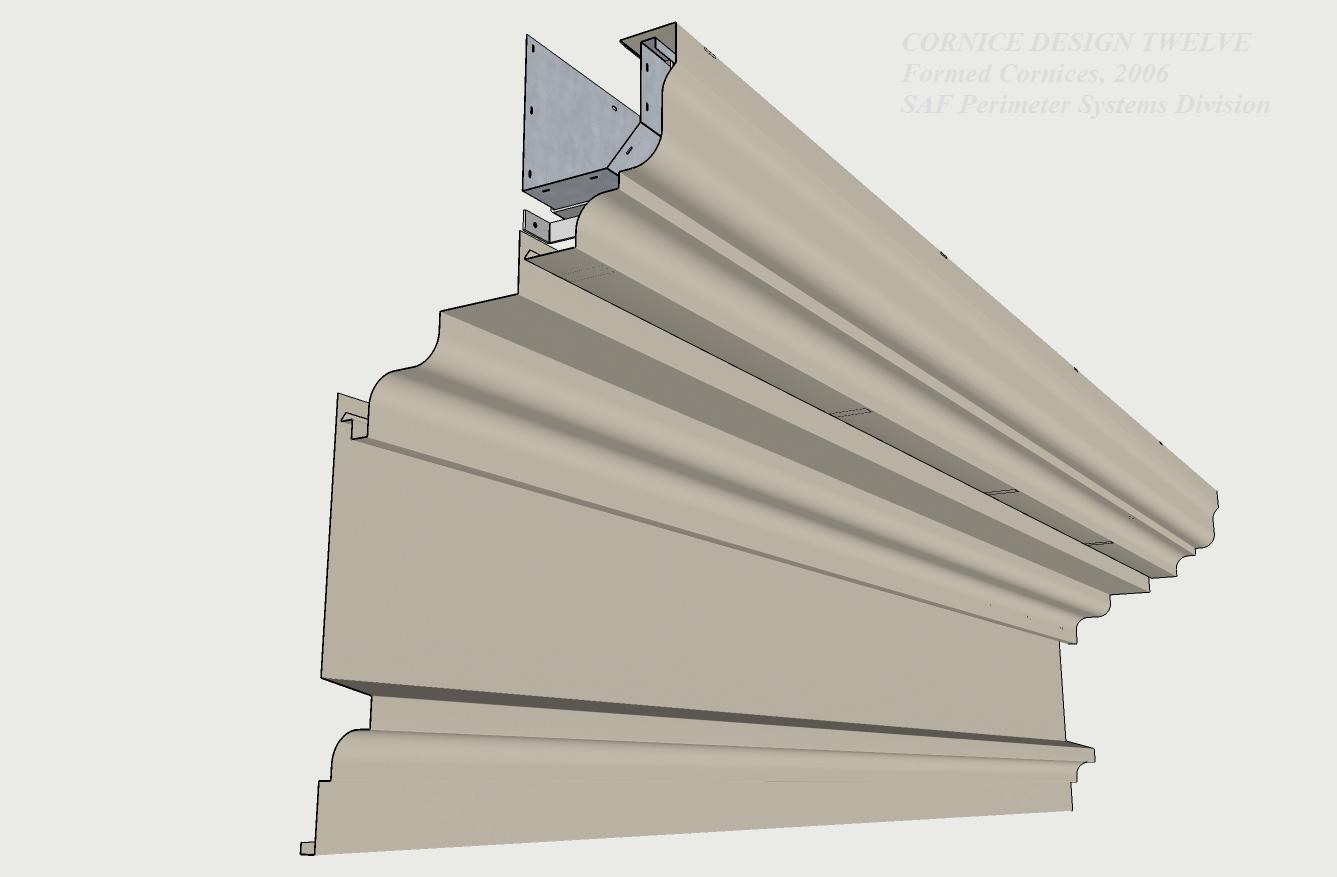

CORNICE DESIGN 12 |
||||
CLASSIC Nominal Sizes: 36″ Entablature, 20″ Depth CONTEMPORARY Nominal Sizes: 18″ Entablature, 20″ Depth This simple cornice offers mouldings for creating a large entablature with a small depth — featuring our Designer Series Roman Gutter System stepped with an compound curved LZ trim and finished with a large frieze trim. Optional components such as dentils, flutes, and engravings may be added. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

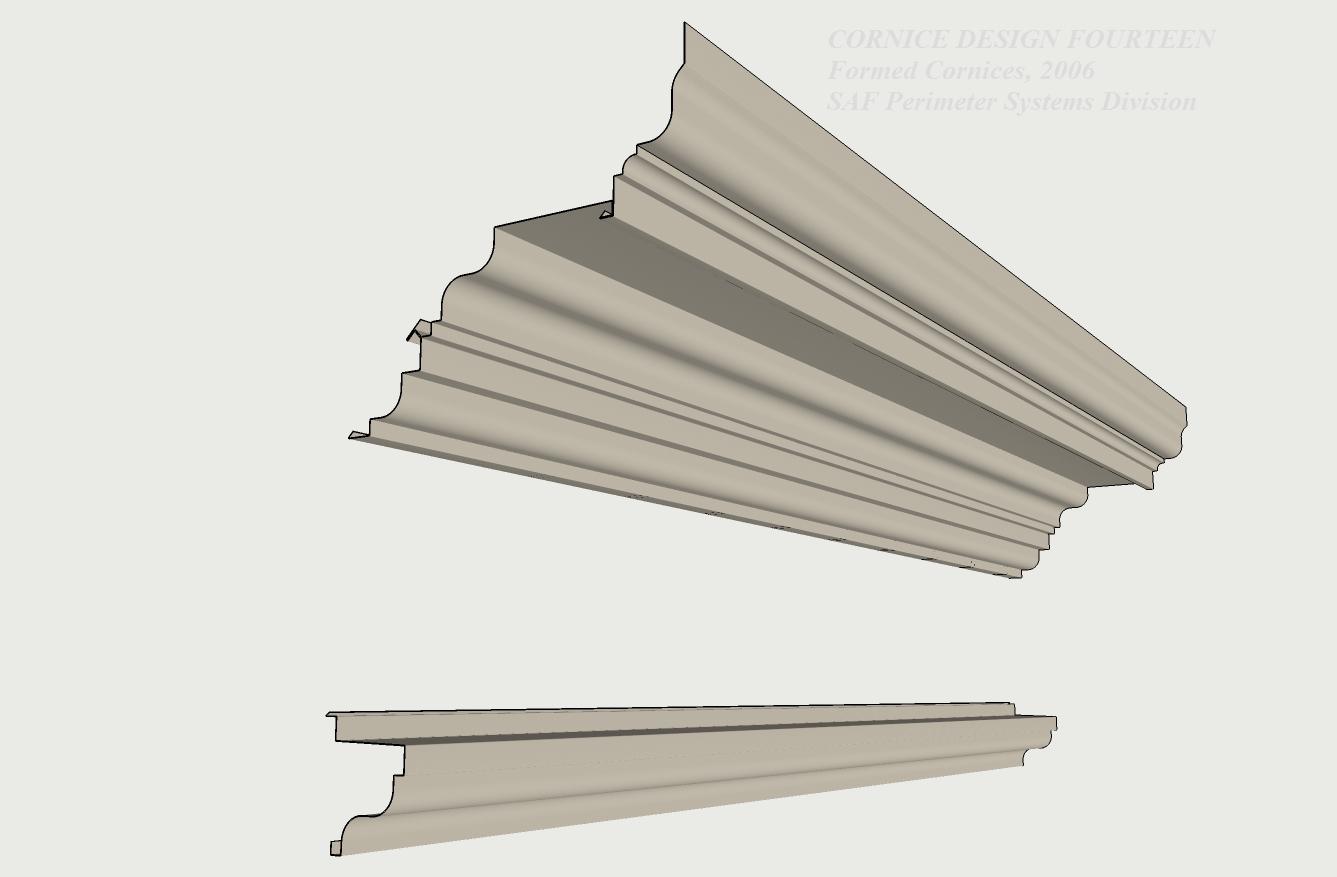

CORNICE DESIGN 14 |
||||
CLASSIC Nominal Sizes: 45″ Entablature, 24″ Depth CONTEMPORARY Nominal Sizes: Not offered This simple 4 piece cornice design offers a large entablature by exposing a portion of the wall surface as well as a large depth. Moulding profiles include our crown moulding and dual convex concave mouldings. An LZ Trim is placed on the wall surface below the cornice giving it a striking effect. With a little creativity this cornice could include dentils. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

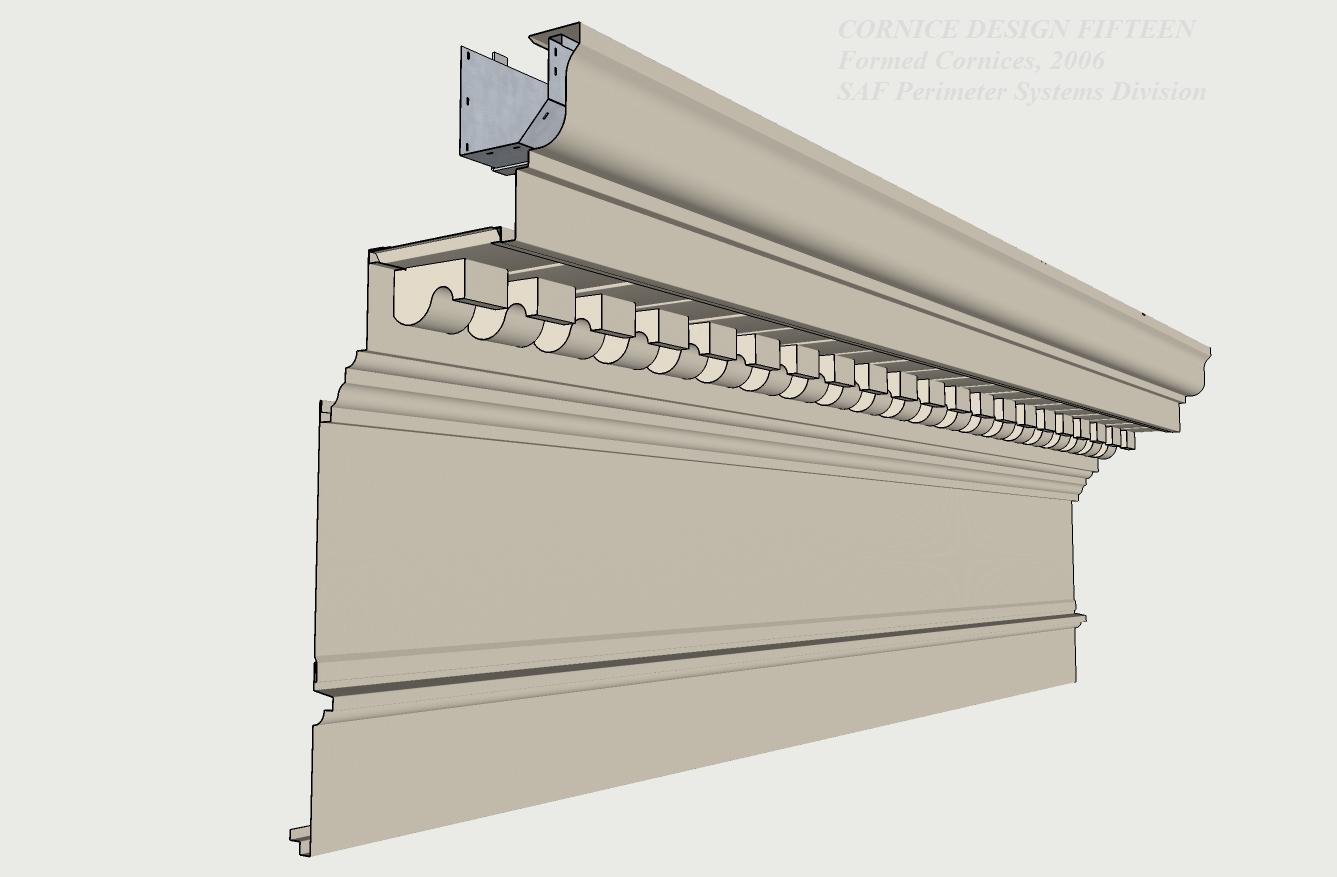

CORNICE DESIGN 15 |
||||
CLASSIC Nominal Sizes: 40″ Entablature, 18″ Depth CONTEMPORARY Nominal Sizes: 18″ Entablature, 18″ Depth This cornice uses large scrolled dentils custom designed for the project. Cornice 15 also boasts a large entablature with a small depth and features our Designer Series Colonial gutter (customized). We are often called upon to modify the fascia of our Designer Series commercial gutters, and Cornice Design 15 is an excellent example of such modifications. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |

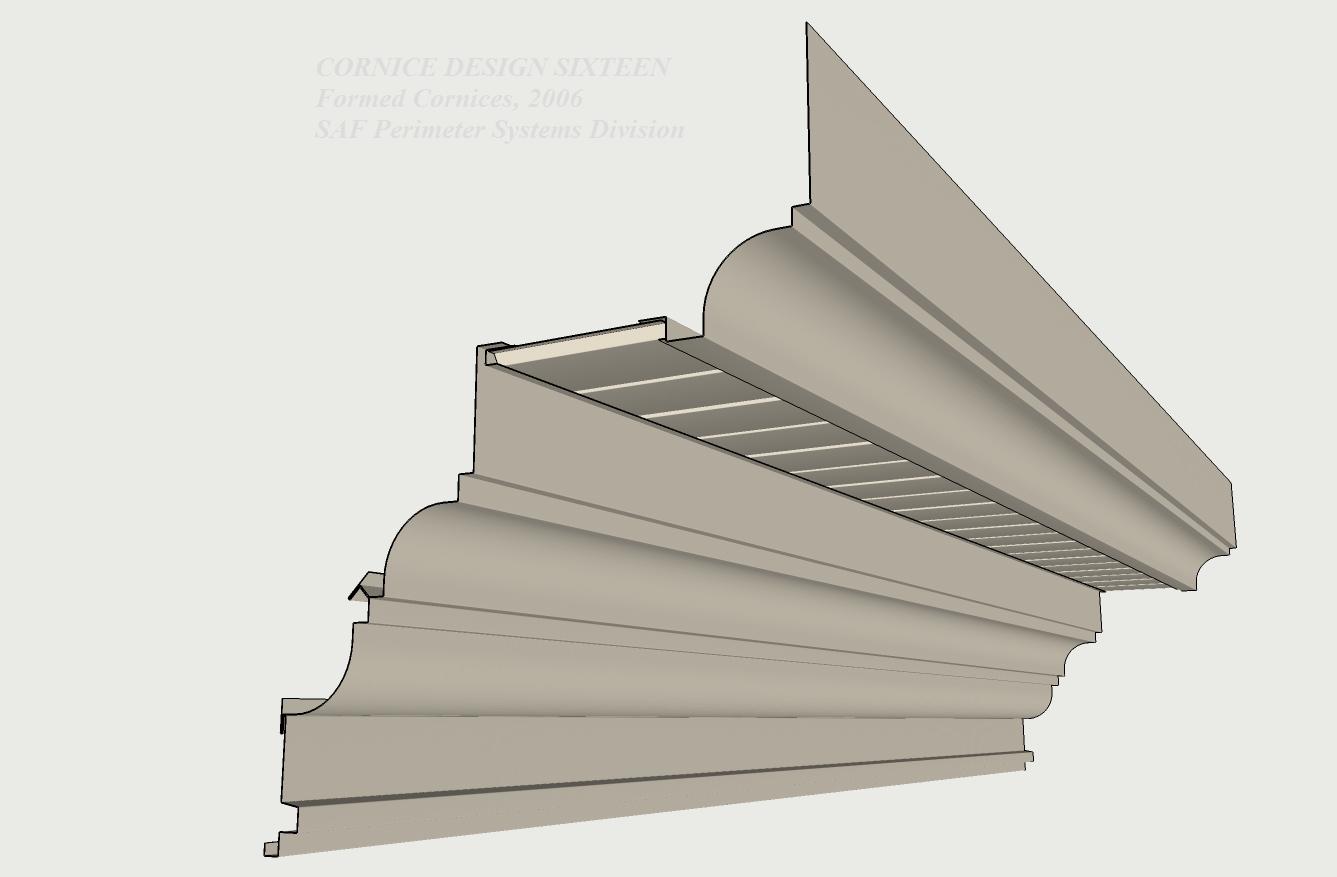

CORNICE DESIGN 16 |
||||
CLASSIC Nominal Sizes: 32″ Entablature, 18″ Minimum Varikable Depth CONTEMPORARY Nominal Sizes: Not offered Large entablature with a variable depth to accommodate your soffit requirements. This simple design may be used without gutters. Or, by increasing the fascia permits the use of our Designer Series. Profiles include large 3” convex and concave mouldings. Soffits may be solid, half vented, or full vented. Optional components include flutes and engravings. CAD | SKETCHUP | SPECIFICATION | SUBMITTAL | INSTALLATION |
VERSA CORNICE Profiles |
||||
Using profiles from SAF Cornice Mouldings, Versa Cornice is a product developed to convert a dull parapet coping into a visually exciting sculptured roof edge. Designed for both retrofit and new construction, Versa-Cornice attachment brackets fit all SAF Perimeter Systems coping caps and most other parapet caps or applications. | ||||

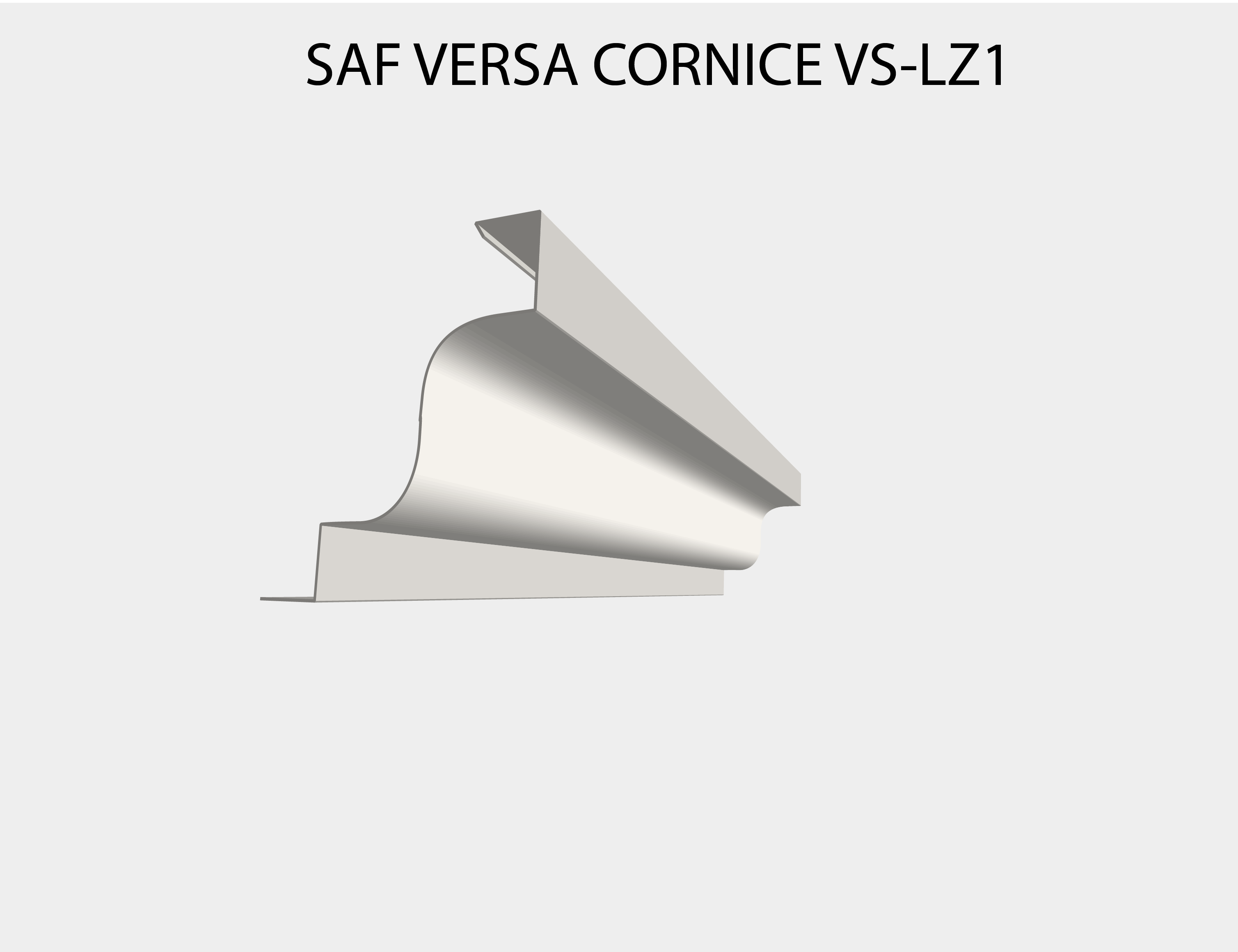

Model VS-LZ1 – CAD – SUBMITTAL – SPECIFICATIONS |

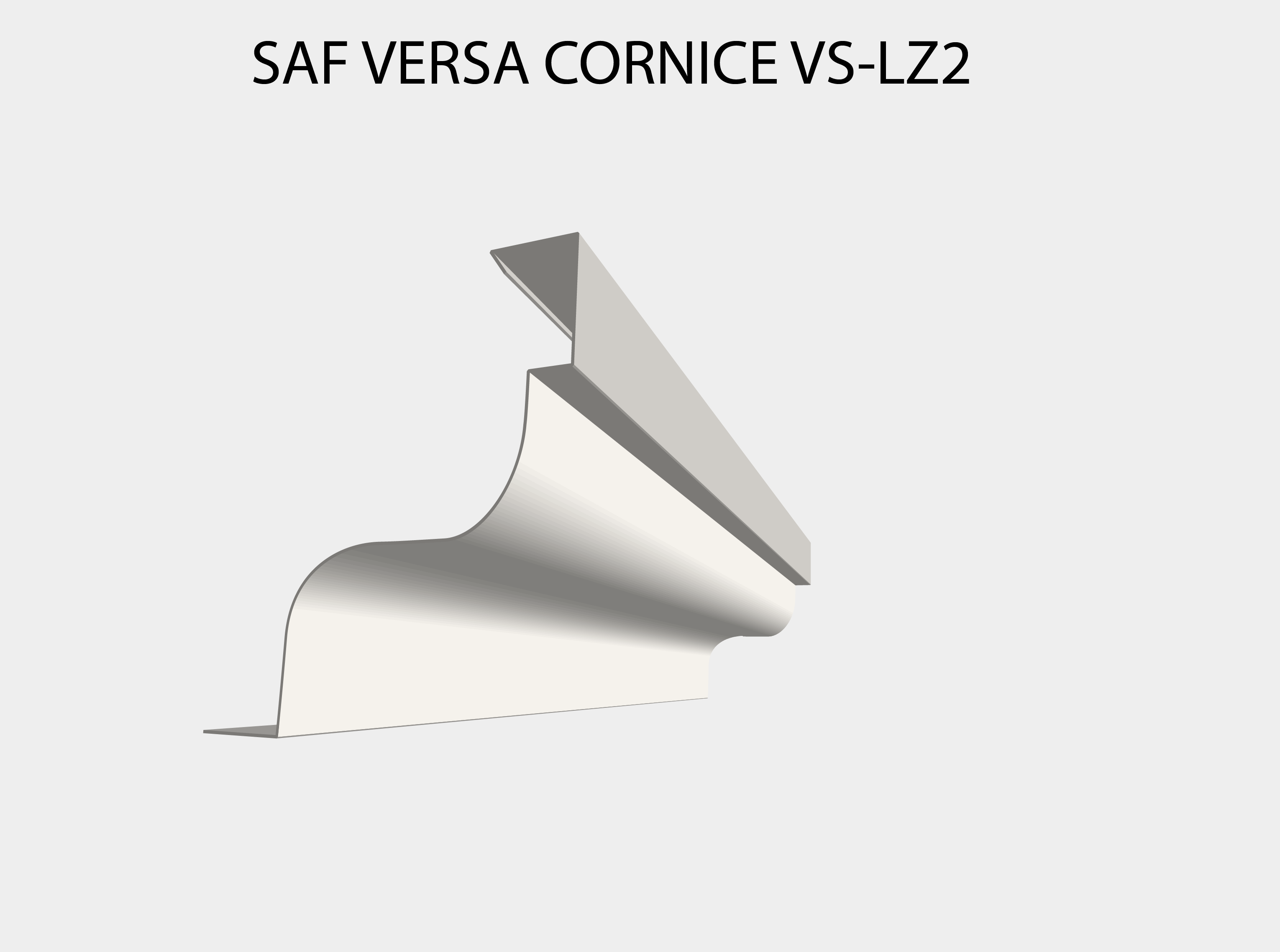

Model VS-LZ2 – CAD – SUBMITTAL – SPECIFICATIONS |

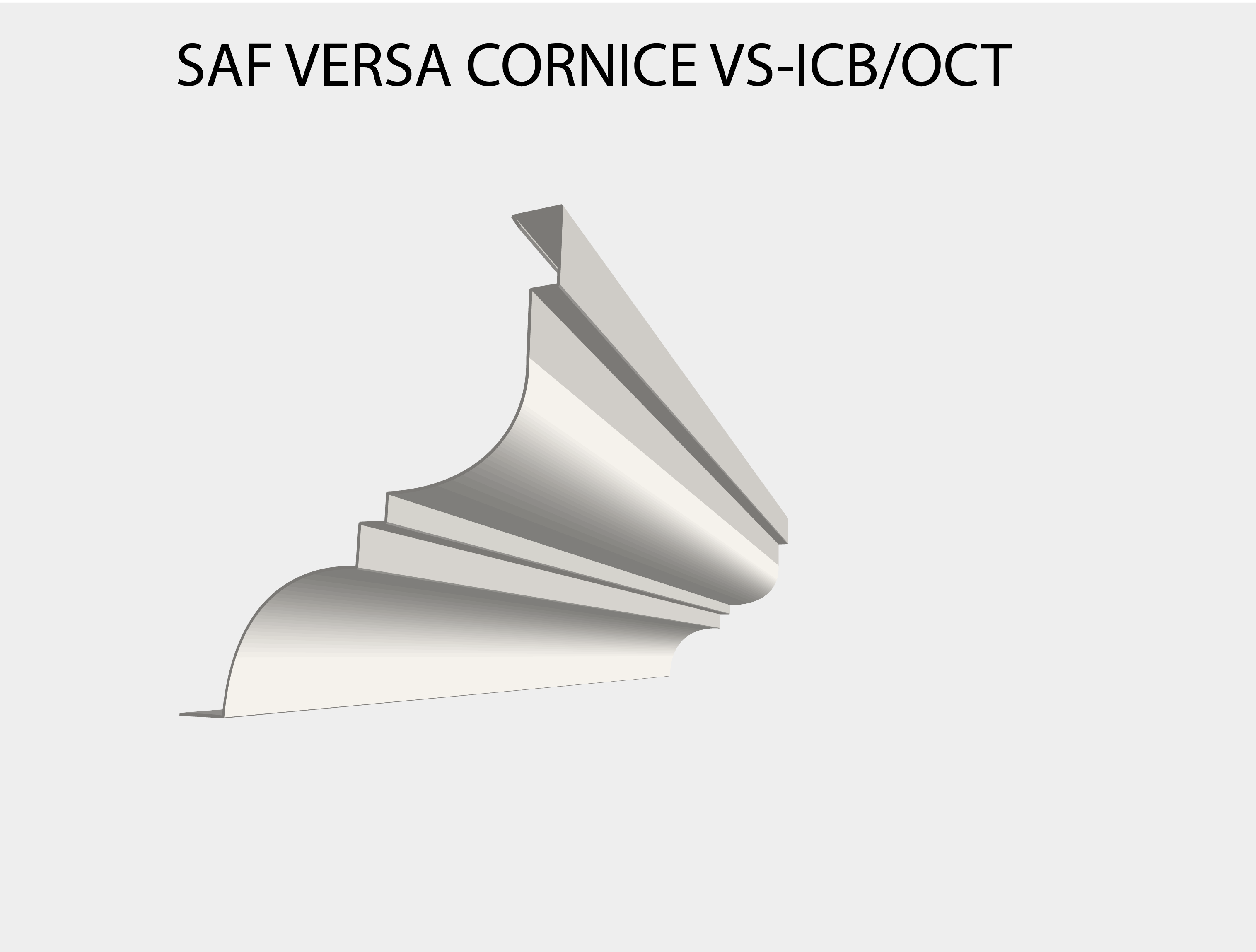

Model VS-ICB/OCT – CAD – SUBMITTAL – SPECIFICATIONS |
Model VS-OCB/ICT – CAD – SUBMITTAL – SPECIFICATIONS |
